Virtualization Management Module
Farm
A Farm (or cluster) is
a group of Hypervisors pooled together and sharing storage
resources to provide an overall fault tolerant system for hosting
Virtual Machines.
Farm Properties
| Name | Type | Mandatory? |
|---|---|---|
| Name | Alphanumeric string | Yes |
| Organization | Foreign key to a(n) Organization | Yes |
| Business criticity | Possible values: high, low, medium | No |
| Move to production date | Date (year-month-day) | No |
| Description | Multiline character string | No |
Tabs
| Tab | Description |
|---|---|
| Contacts | All the contracts for this configuration item |
| Documents | All the documents linked to this configuration item |
| Tickets | All the tickets for this configuration item |
| Application solutions | All the application solutions depending on this configuration item |
| Logical volumes | All the logical volumes used by this device |
| Hypervisors | All the hypervisors that compose this farm |
| Virtual machines | All the virtual machines hosted by this host |
| Provider contracts | All the provider contracts for this configuration item |

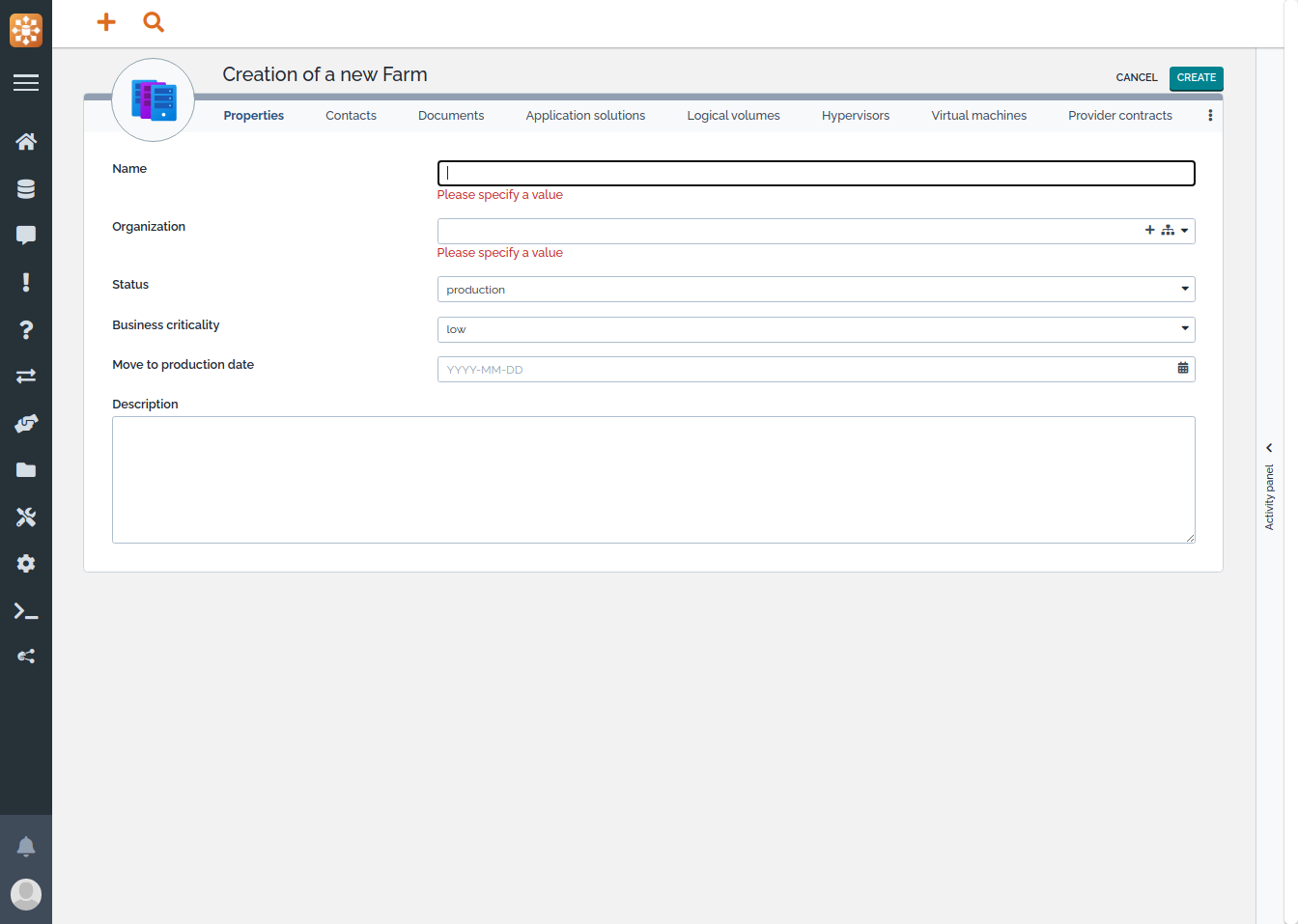

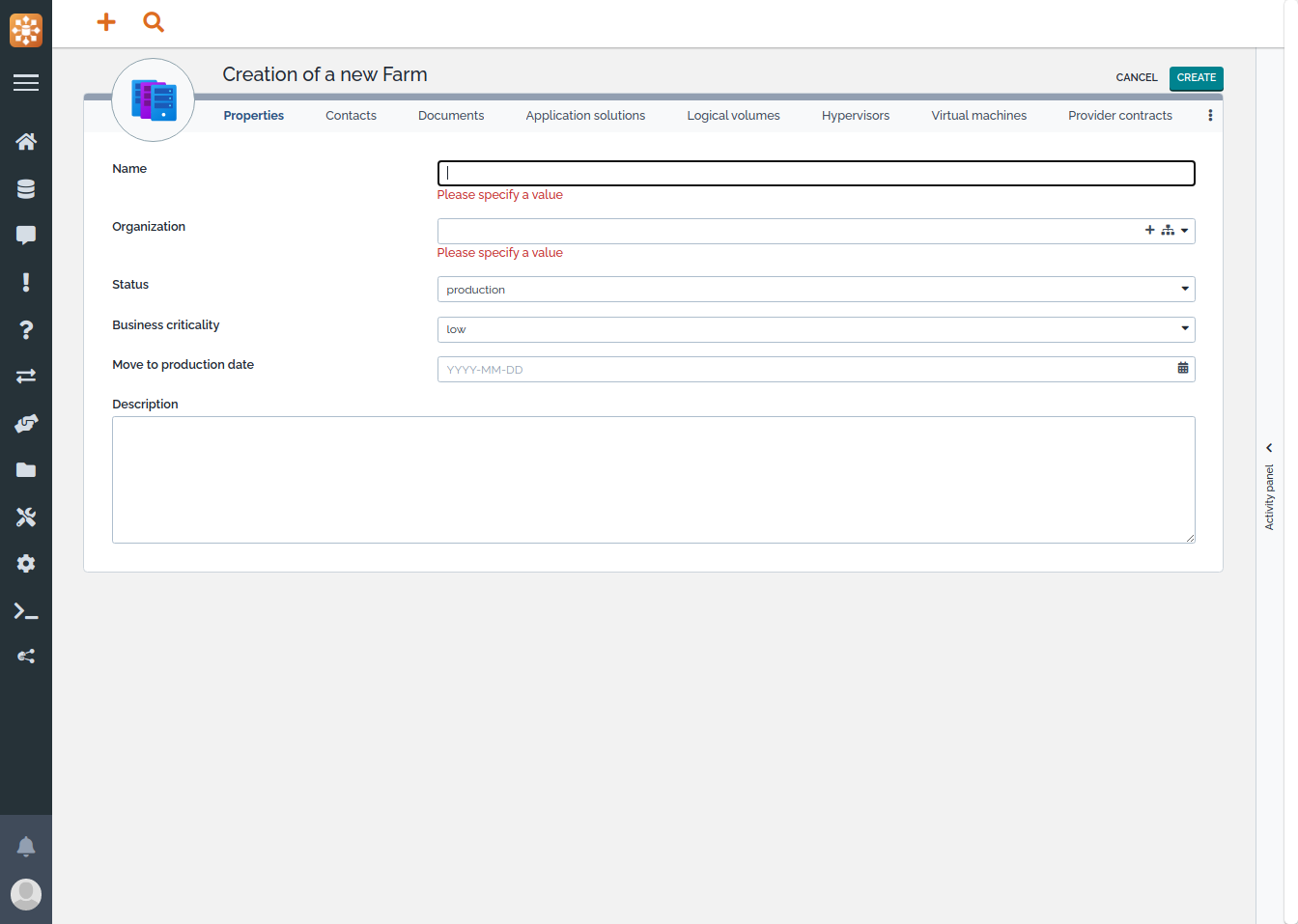

Creating a new Farm
Type the Class name in the Quick create area to
create a new object, then fill the form and press the
Create button.
Relations
-
Impacts: a Farm impacts its Virtual Machines, the Application Solutions which this Farm is part of and all the contacts (Persons, Teams) directly linked to the Farm.
-
Depends on: a Farm depends on the related Hypervisors and Logical Volumes.
Hypervisor
An hypervisor is a
virtualization software (MS Hyper-V, VMWare ESX, Xen, etc.),
running on a physical Server and supporting the creation of Virtual
Machines.
Hypervisor Properties
| Name | Type | Mandatory? |
|---|---|---|
| Name | Alphanumeric string | Yes |
| Organization | Foreign key to a(n) Organization | Yes |
| Server | Foreign key to a(n) Server | No |
| Farm | Foreign key to a(n) Farm | No |
| Business criticity | Possible values: high, low, medium | No |
| Move to production date | Date (year-month-day) | No |
| Description | Multiline character string | No |
Tabs
| Tab | Description |
|---|---|
| Contacts | All the contracts for this configuration item |
| Documents | All the documents linked to this configuration item |
| Tickets | All the tickets for this configuration item |
| Application solutions | All the application solutions depending on this configuration item |
| Logical volumes | All the logical volumes used by this device |
| Virtual machines | All the virtual machines hosted by this host |
| Provider contracts | All the provider contracts for this configuration item |

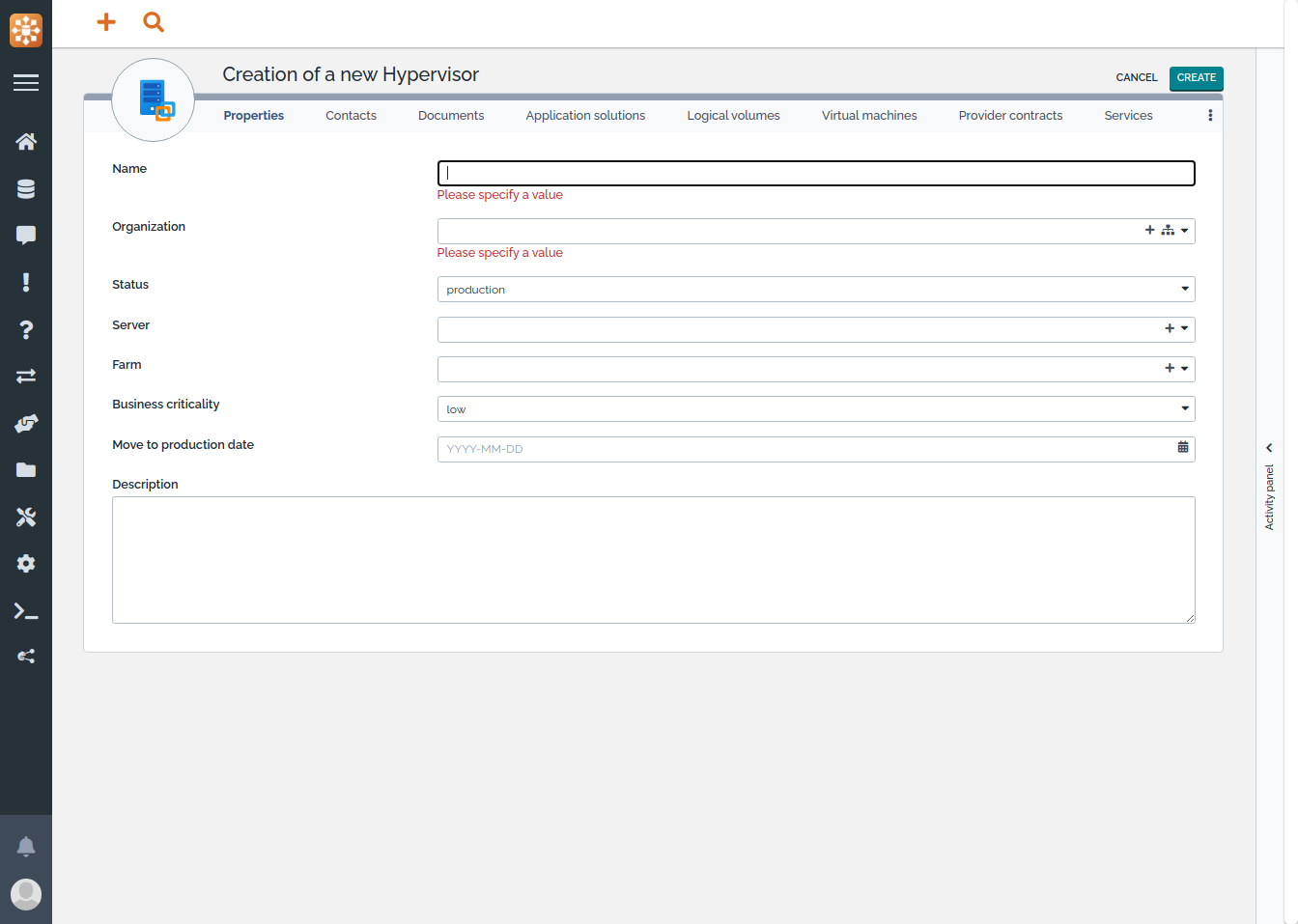

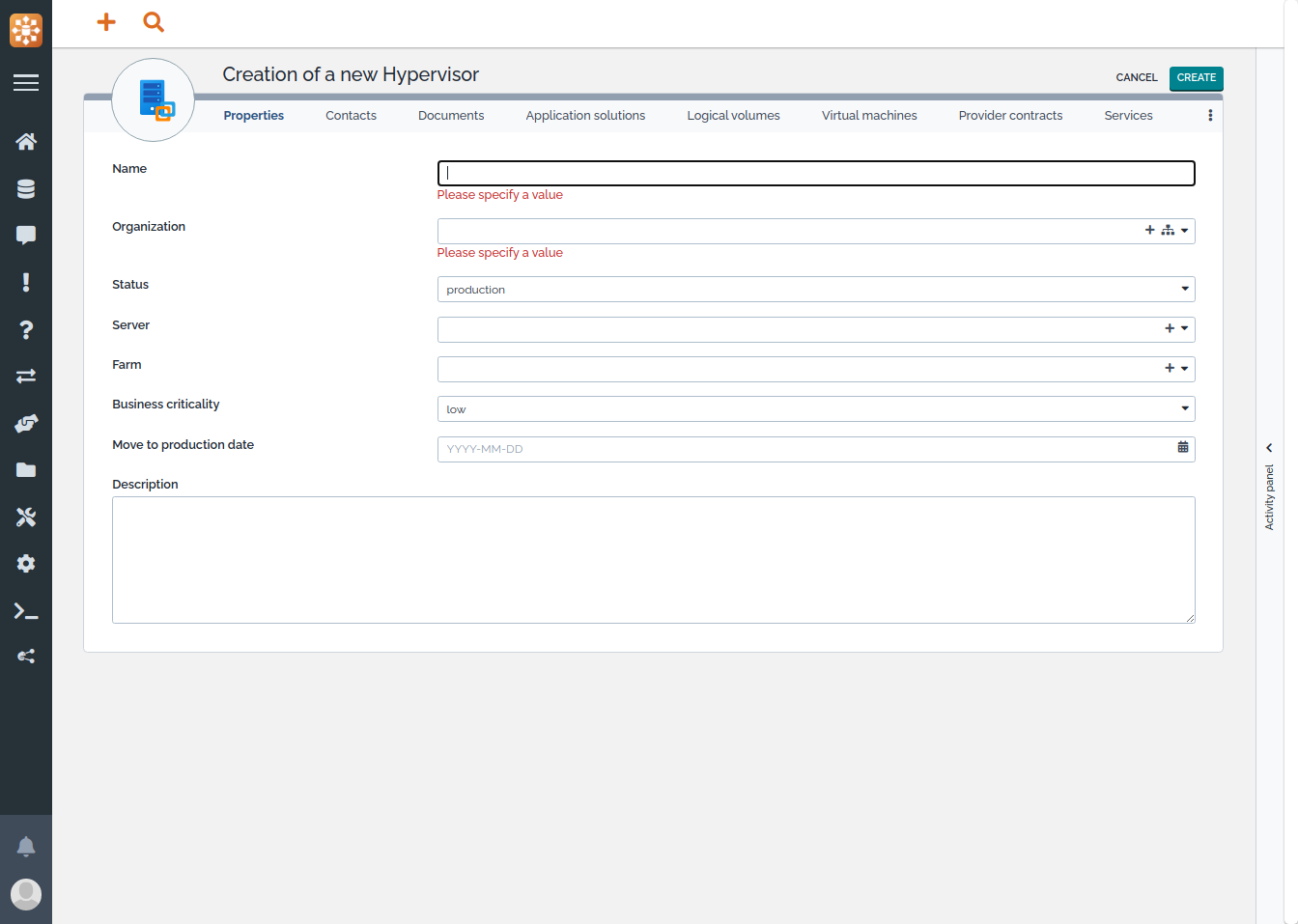

Creating a new Hypervisor
Type the Class name in the Quick create area to
create a new object, then fill the form and press the
Create button.
Relations
-
Impacts: an Hypervisor impacts the Farms that use it, the Virtual machines running on the Hypervisor, the Application Solutions which this Hypervisor is part of and all the contacts (Persons, Teams) directly linked to the Hypervisor.
-
Depends on: an Hypervisor depends on the related Logical Volumes and the Server which hosts this Hypervisor.
Logical Interface
A network interface
for a Virtual Machine.
Logical Interface Properties
| Name | Type | Mandatory? |
|---|---|---|
| IP address | IP address | No |
| MAC address | Alphanumeric string | No |
| Comment | Multiline character string | No |
| IP gateway | IP address | No |
| IP mask | IP address | No |
| Speed | Decimal value (could be negative) | No |
| Virtual machine | Foreign key to a(n) Virtual Machine | Yes |
Virtual Machine
A Virtual Machine is
the virtual equivalent to a Server, it is hosted either on an
Hypervisor or on a Farm.
Virtual Machine Properties
| Name | Type | Mandatory? |
|---|---|---|
| Name | Alphanumeric string | Yes |
| Organization | Foreign key to a(n) Organization | Yes |
| Status | Possible values: implementation, obsolete, production, stock | No |
| Business criticity | Possible values: high, low, medium | No |
| Virtual host | Foreign key to a(n) Virtual Host | Yes |
| OS family | Foreign key to a(n) OS Family | No |
| OS version | Foreign key to a(n) OS Version | No |
| OS licence | Foreign key to a(n) OS Licence | No |
| CPU | Alphanumeric string | No |
| RAM | Alphanumeric string | No |
| Move to production date | Date (year-month-day) | No |
| Description | Multiline character string | No |
Tabs
| Tab | Description |
|---|---|
| Softwares | All the softwares installed on this configuration item |
| Contacts | All the contracts for this configuration item |
| Documents | All the documents linked to this configuration item |
| Tickets | All the tickets for this configuration item |
| Application solutions | All the application solutions depending on this configuration item |
| Network Interfaces | All the logical network interfaces |
| Logical volumes | All the logical volumes used by this device |
| Provider contracts | All the provider contracts for this configuration item |

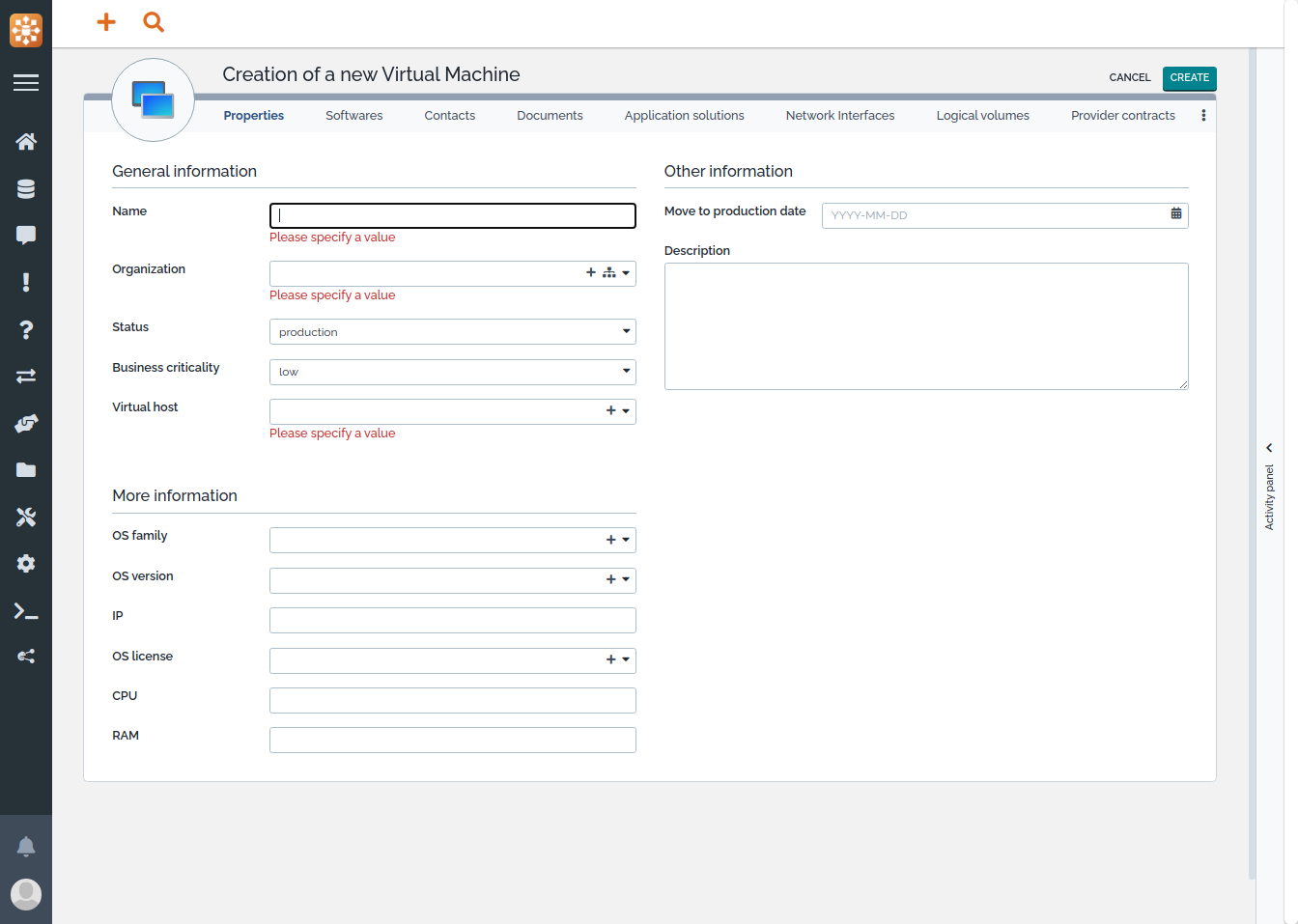

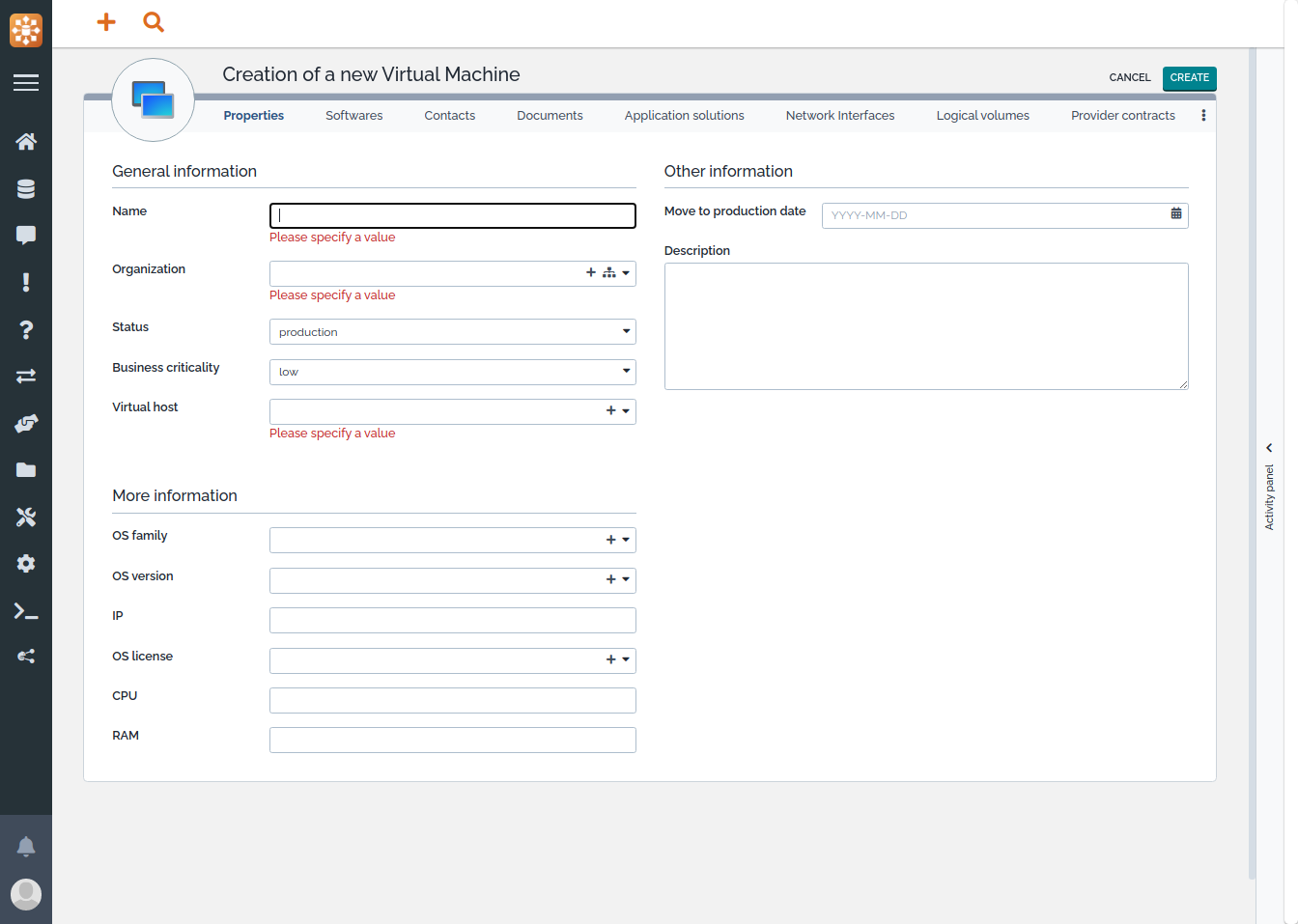

Creating a new Virtual Machine
Type the Class name in the Quick create area to
create a new object, then fill the form and press the
Create button.
Relations
-
Impacts: a Virtual Machine impacts the software intances running on it, the Application Solutions which this VM is part of and all the contacts (Persons, Teams) directly linked to the VM.
-
Depends on: a Virtual Machine depends on the related Logical Volumes and the Hypervisor or Farm on which the VM runs.
