To configure this extension, you'll need to follow the configuration steps on both Github and iTop sides.

Note: This step is only necessary once.

Creation

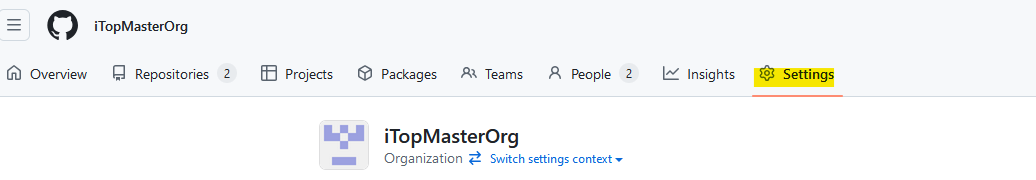

First of all, from your organization, create an application via “Settings”.

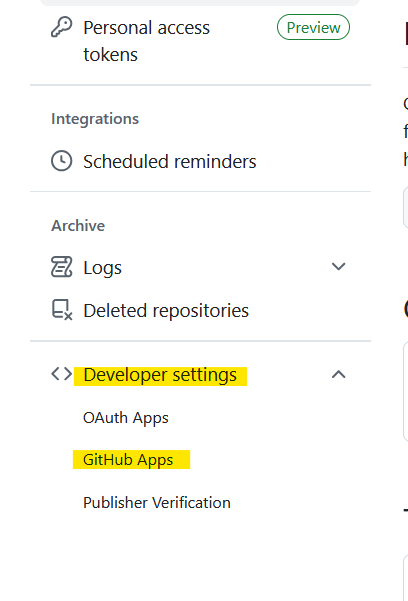

• Select “Developper settings” -“Github Apps”


• Define the name and the URL of your application


• Uncheck the webhook url box (you'll fill it in later when iTop provides you with the url to specify)

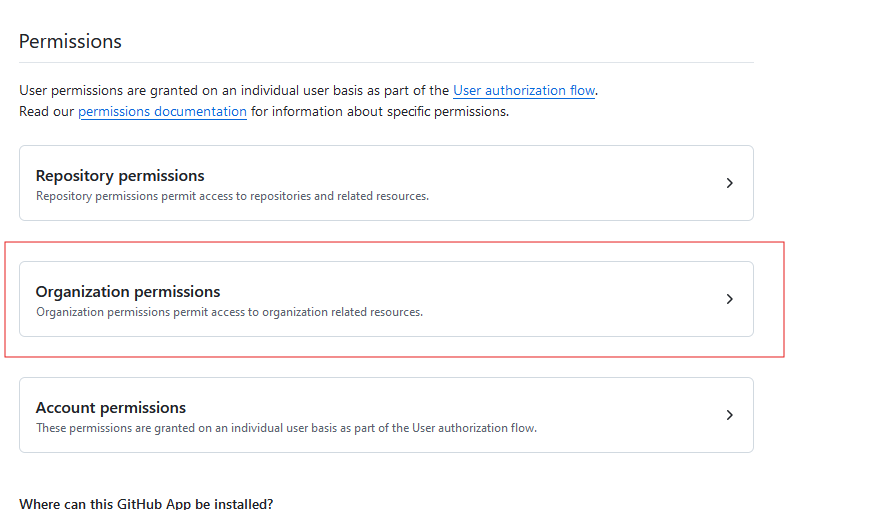

Apply rights

Certain authorizations will be required for iTop:

• 🔒Webhooks: to manage the post-receive hooks for a repository.

• Define the scope on which this application is authorized

Installation of your application

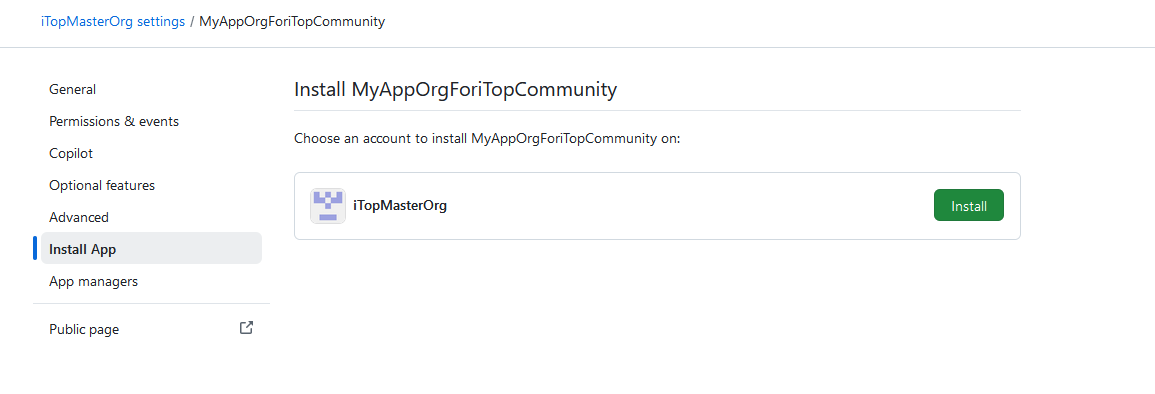

Go to Github apps menu from your organization

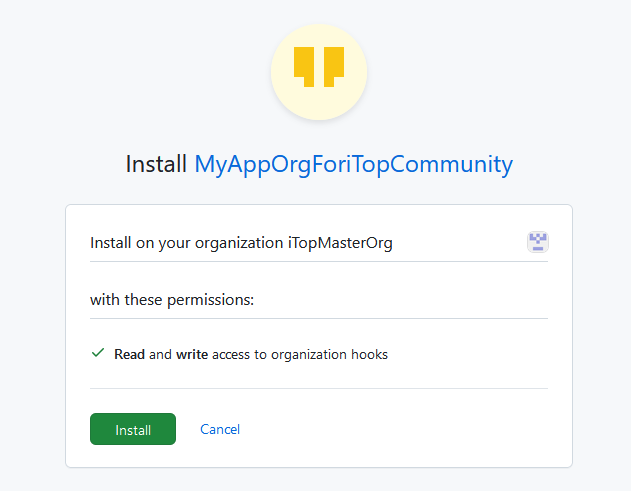

In the example below, the application will be installed and authorized on your organization “iTopMasterOrg”

Define Private key
Once you have registered your request, you will be asked to create a private key.

You've now created the application “MyAppOrgForiTopCommunity” (with its application ID) under the Github organization “iTopMasterOrg” and obtained the private key.

General information about Connector

You will now create a connector to communicate with Github.
Go to submenu of the standard Configuration menu - VCS Management - Connector

You will document

• A name for your iTop connector
• The Github organization linked to your application
• The application id of Github application
• The private key generated on Github
• The tab “Webhooks” will be filled automatically when you will create and attach your webhook to the connector

General information about VCSWebhook

You will document

• A label for your VCS Webhook
• The connector you are using

• When the iTop webhook is created, you'll get the webhook URL defined to document in the webhook section on Github.
• You will check if synchronisation is working between Github and iTop. Don't forget to activate your cron as synchronisation is done through background tasks.

• Link your VCS Webook to, at least, one automation rule. Three automations rules are proposed with the installation of the extension. Up to you to update them or create new ones.

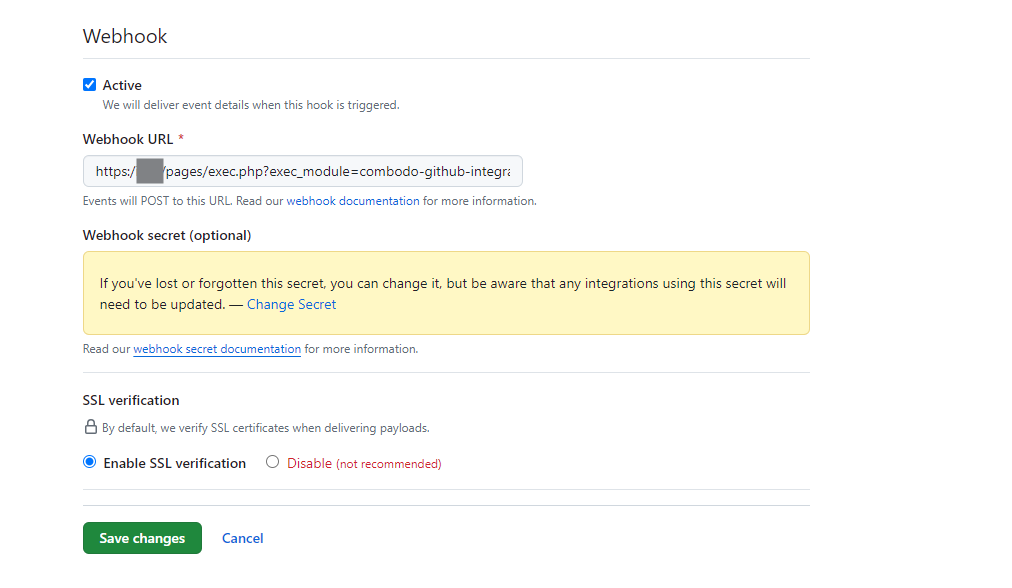

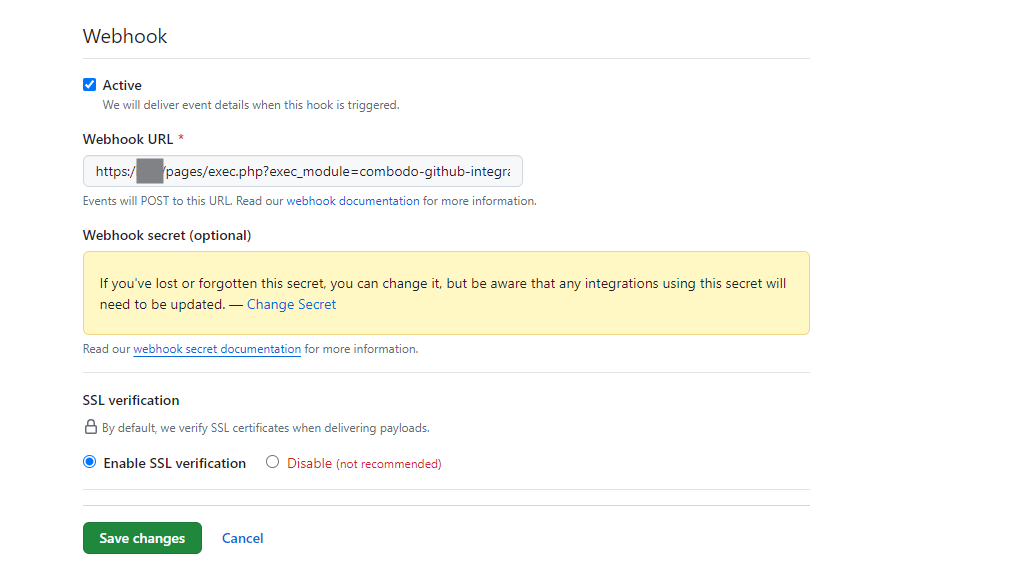

Update your newly created “MyAppOrgForiTopCommunity” application and go to the Webhook section. Set the webhook URL provided by your iTop VCS Webhook.

You need, now, to link automation rules to your webhook : Link automation rules

If you need to override the app_root URL (your development VM isn't directly connected to the Internet, for example), you'll need to define parameters to override the default settings in the configuration file.

Configuration

      'combodo-vcs-integration' => array (
                'webhook_user_id' => 26587,
                'synchro_auto_interval' => 60,
                'webhook_host_overload' => 'cn64-76-2-185-442.ngrok-free.app',
                'webhook_scheme_overload' => 'https',
        ),
