User request management (Service Desk) Module

There are two alternatives for managing user requests in iTop. You can choose to install one of the two following modules:

• Simple Ticket Management
• User Request Management ITIL V3

The Simple Ticket Management module provides a simplified ticketing system. It is used to keep track of end-users requests. There are two types of request:

• Incidents are used to track unexpected issues that have an impact on the delivered services.
• Service requests are used to request new services or features like installing a new PC, creating a new email address.

This module manages both types of requests in a single type of ticket. Incidents and service requests will follow the same workflow. This allows agent to easily manage any kind of ticket and reclassify a request without having to create a new one.

The User Request ITIL V3 module focuses on service requests.

Whatever module you choose, a user request can be created via the customer portal or directly in iTop. The support agent can then modify and communicate with the customer via a journal called “Public log.” He can also communicate with internal teams within his company through a journal called “Private log”.

A customer user will see only the public log. The private log cannot be viewed from the portal.

A user request is controled by a workflow in order to make sure it is managed according to a defined process. Only authorized users can manage a user request and change its status.

A user request can be linked to a parent problem, or a parent change. In case you have installed the User Request ITIL V3 module, your request can be linked to a parent incident.

It is also possible to regroup user requests under a single user request.

The overview dashboard allows agents and managers to monitor the helpdesk activity.

User request are used to document all the request submitted by users

Click on the “New user request” menu:

The following form is displayed:

The public and the private log are used to keep track of all communications and activities related to a user request.

The public log is aimed at exchanging information with the requestor.

The private log is the preferred way for keeping track of the investigations or operations: copy/paste of command line results, summary of communications with a provider, etc.

Each entry in the public or private log is tracked with the name of the user who updated it and when it was done. It cannot be modified nor deleted.

The public log is visible from the customer portal.

If enabled by your administrator, the reply made in the public log will be sent back to the caller:

When a user request is created, the agent can specify which configuration items (CIs) are related to this request via the tab “CIs”. The impact analysis engine automatically adds to this list all the other CIs that are potentially impacted by the selected items. It also adds all the contacts that are potentially impacted.

The impact rules of each CIs are described in the Configuration management module.

The Helpdesk module is linked to the service catalog in order to:

• define which service and service subcategories can be selected for a given customer
• define to which team a user request can be assigned
• compute time to own (TTO) and time to resolve (TTR) deadlines

The list of services displays only the service that have been purchased by the selected customer via a customer contract. The list of service subcategories displays only the sub categories corresponding to the selected service and the selected request type.

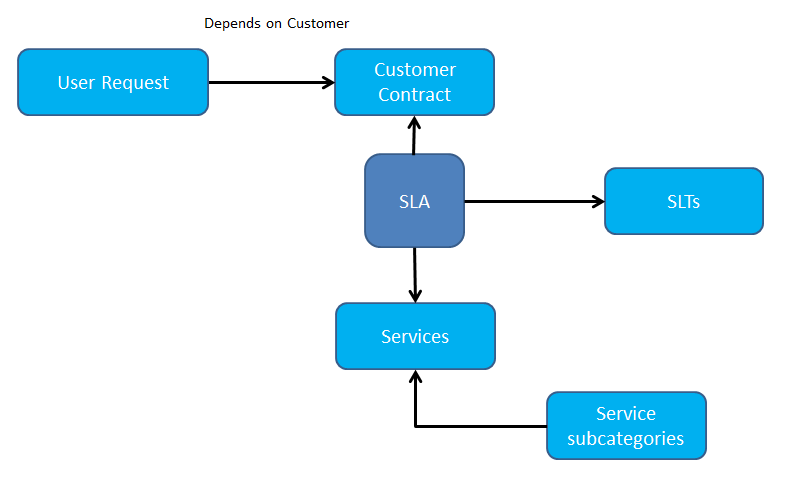

The following picture describes the relationships between the service catalog elements and user requests.

The list of teams to which you can assign a user request is defined by the delivery model of the corresponding customer. When creating a user request, the agent has to select the customer organization, then the list of teams is strictly limited to the teams defined for this customer. If a team is missing, the delivery model of the customer must be updated to reflect this need. See More about Delivery model for more information

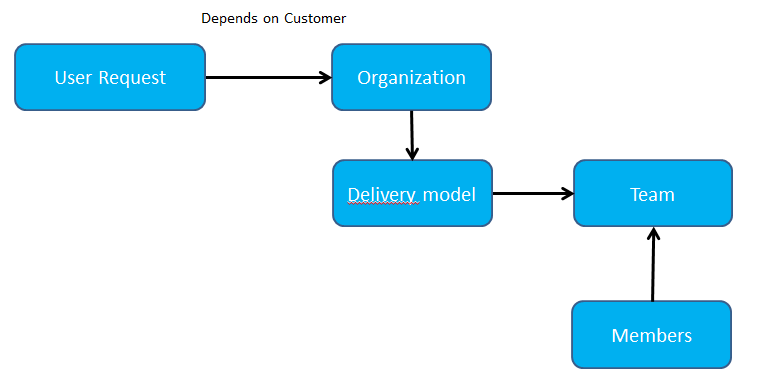

The following picture describes the relationships between the delivery model and user requests.

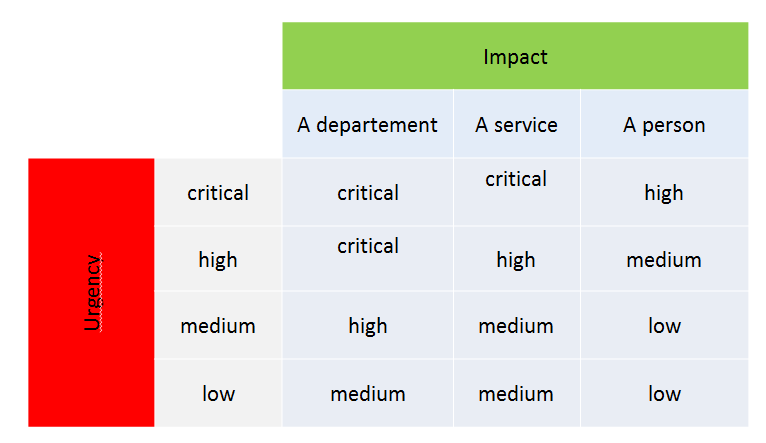

The priority is computed automatically. This computation depends on the impact and the urgency of the user request. The following matrix describes how the priority is computed:

To meet service agreements with customers, iTop automatically computes time to own (TTO) and time to resolve (TTR) deadlines. These deadlines depend on the service level agreements defined in the customer contracts. Deadline calculation can either assume a 24*7 service coverage, or be based on weekly based coverage windows and holidays.

The measured TTO is the time cumulated while the user request is not assigned. When the TTO deadline is passed, the ticket status is automatically changed to “Escalated TTO”.

The measured TTR is the time cumulated while the user request is neither pending nor resolved. When the TTR deadline is passed, the ticket status is automatically changed to “Escalated TTR”.

The computation of the deadlines depends on:

• The service level agreement defined in the customer contract for the selected service
• The priority of the user request
• The type of request

These are defined in the service level targets (SLT) corresponding to the service level agreement (SLA).

In addition to this criteria, and if a coverage window has been defined and selected for the couple customer contract / selected service, then the deadline will also take into account the working hours (and eventually holidays).

The deadlines computation is performed each time a modification is made on the user request.

When the cumulated TTO/TTR reaches 75% of the TTO/TTR deadline, then the user request is displayed in yellow. Once the deadline is passed, it becomes red.

Once the user request is resolved, deadlines and measures are kept within the user request. This can be used both for analyzing process issues and for reporting purposes.

The following information are recorded:

• TTO deadline (date and time)
• TTO cumulated (seconds)
• TTO passed (yes / no)
• TTO overrun (seconds)
• TTR deadline (date and time)
• TTR cumulated (seconds)
• TTR passed (yes / no)
• TTR overrun (seconds)

It is sometimes useful to regroup user requests under an incident which is the root cause of the issue. For instance when a mail server is down, you may have several end users complaining about mailbox being unavailable.

To group user requests, use the field parent incident.

If an incident ticket is parent of a user request, then each time its private and public logs are modified, iTop will automatically update the logs of the child requests. When the parent incident get resolved, iTop will automatically mark the child requests as “resolved”.

Depending on the status of the object, the contraints on the properties vary as shown on the table below:

A specific action Wait for approval is available on all User Requests in state New.

When the user selects this action, she will be prompted to select the Approver contact.

Then the User Request enters the state Waiting for approval and a notification is sent to the Approver. The Approver can approve or reject the request by clicking on the link provided in the email (an iTop login is not mandatory for this action). Alternatively, she can approve or reject from within iTop.

If there is no answer within 5 days (configurable), the answer defaults to Rejected (configurable).

The User Request will then continue its way through its lifecycle, depending on the approval status: Rejected or Approved.

From the Helpdesk menu, click on Ongoing approvals:

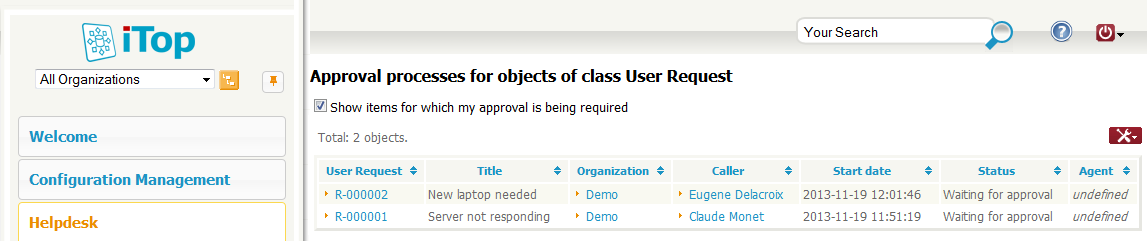

The page shows a list of the User Requests having an approval process running, and for which your approval is being requested:

From the user request, open the Other actions menu and select Approve or Reject:

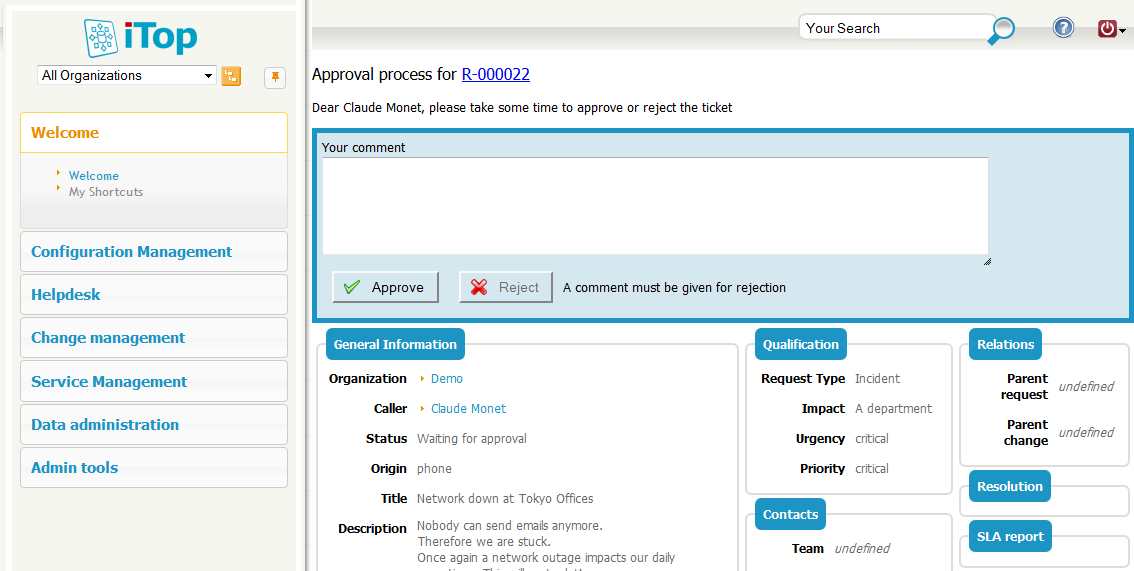

The approval form is displayed:

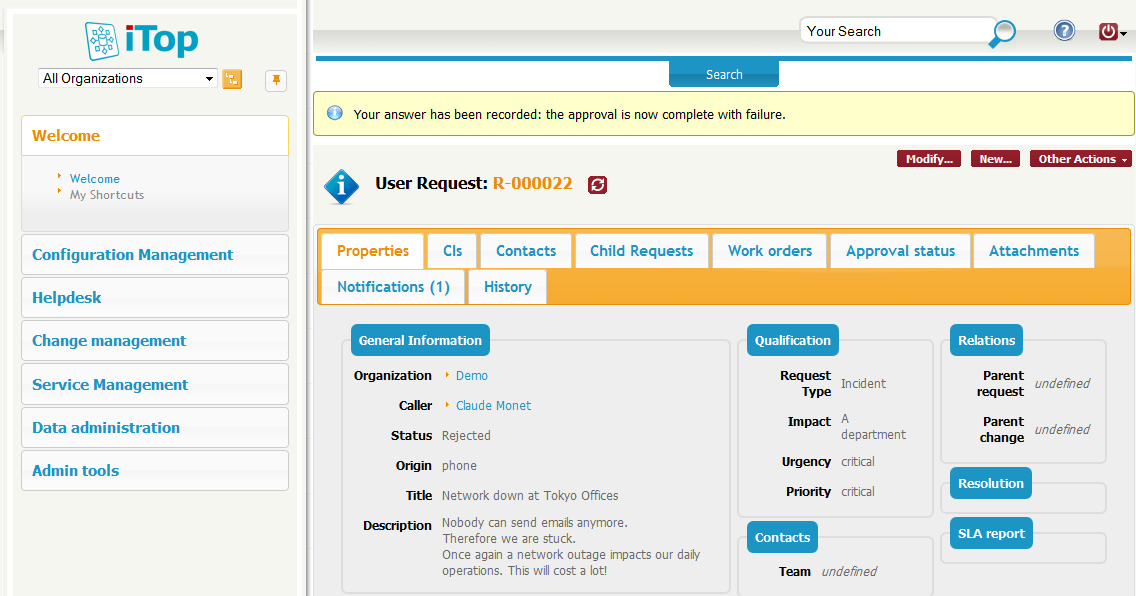

After the reply has been given, you are redirected to the user request and a banner reminds you the outcome of your reply.

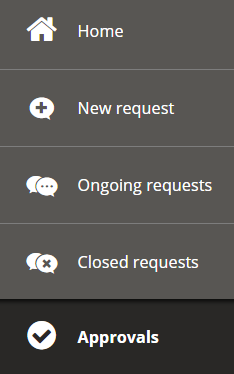

Either on the home page, or on the menu, click on Approvals:

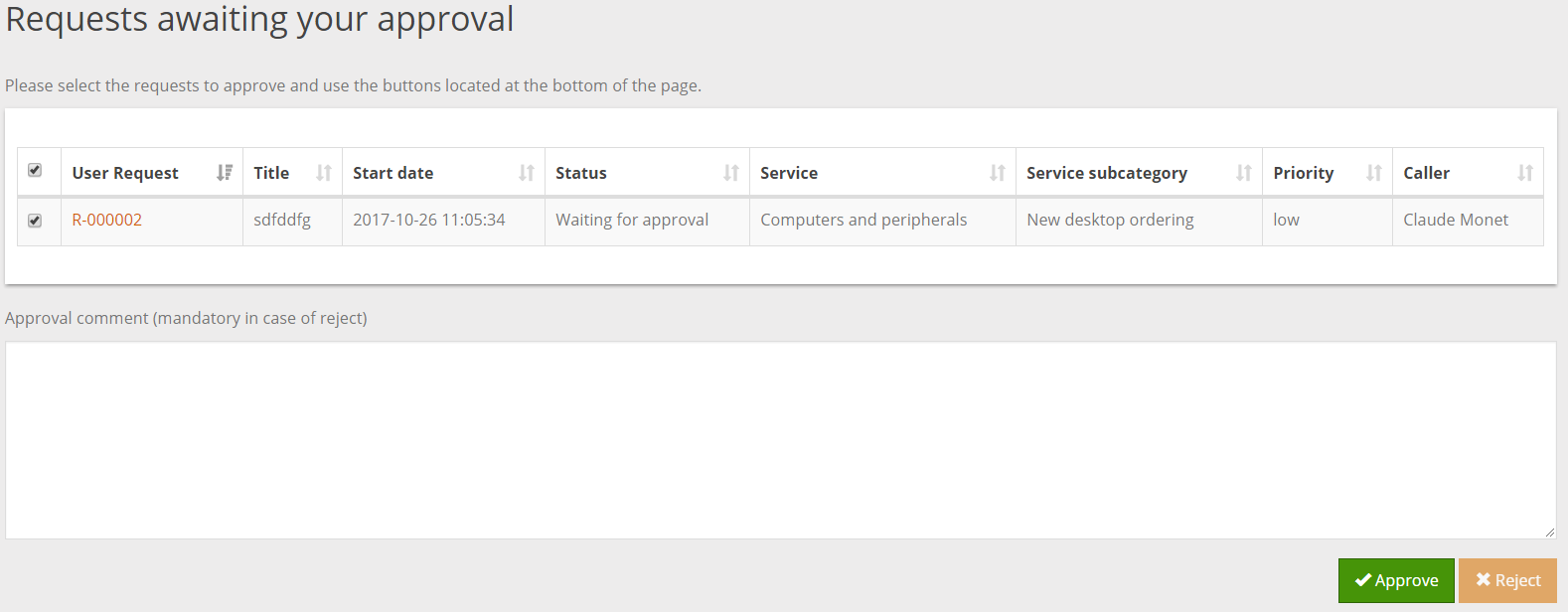

The list of ongoing approvals is displayed:

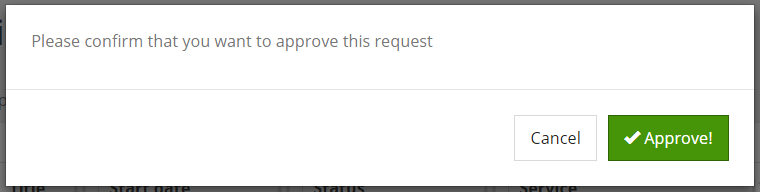

You are then prompted for confirmation:

After the reply has been given, the list of remaining expected approvals is displayed again.

If you are an administrator, and if the setup allows it, then you have a menu to bypass the process:

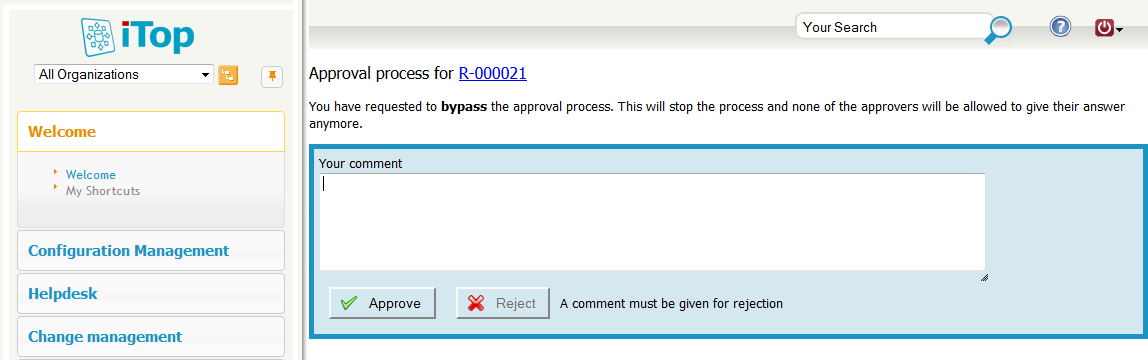

The approval form is then a little different than the standard reply form: it reminds you that bypassing the process is a little different.

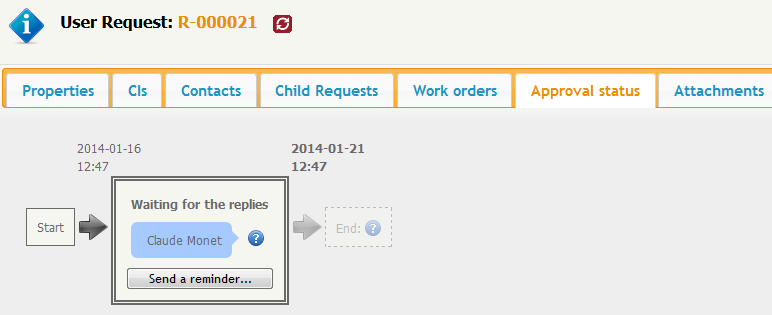

As soon as a user request has been through an approval process, the tab Approval status shows detailed information about the ongoing or terminated approval.

In the above example, the deadline is displayed in bold: 21st of january at 12:47.

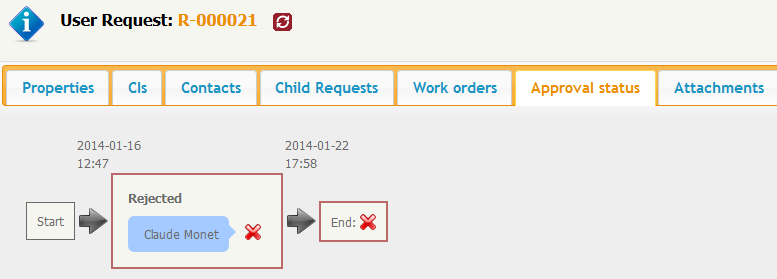

After the reply has been given, the status appears in clear:

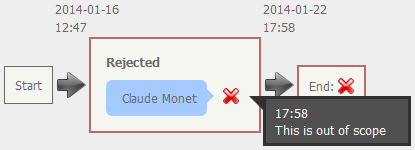

Move your mouse over the image next to the approver's name, and you will get the date of the answer and her comment if any has been given:
