Creating a new class of CI: Monitor

This document explains, step by step, how to create your own iTop module in order to add a new class of CIs: a Monitor.

learning:
Add a new CI class
level:
Intermediate
domains:
XML, Presentation, Dashboard, Dictionary
min version:
2.1.0

Goals of this tutorial

In this step-by-step tutorial you will learn to:

  • create your own extension module for iTop
  • create a new class of object
  • add a new entry into an existing dashboard

For the purpose of this tutorial we will create a new class of CI, called Monitor, that will be very similar to the Peripheral class, with the addition of an extra field “technology” to distinguish CRT and LCD monitors.

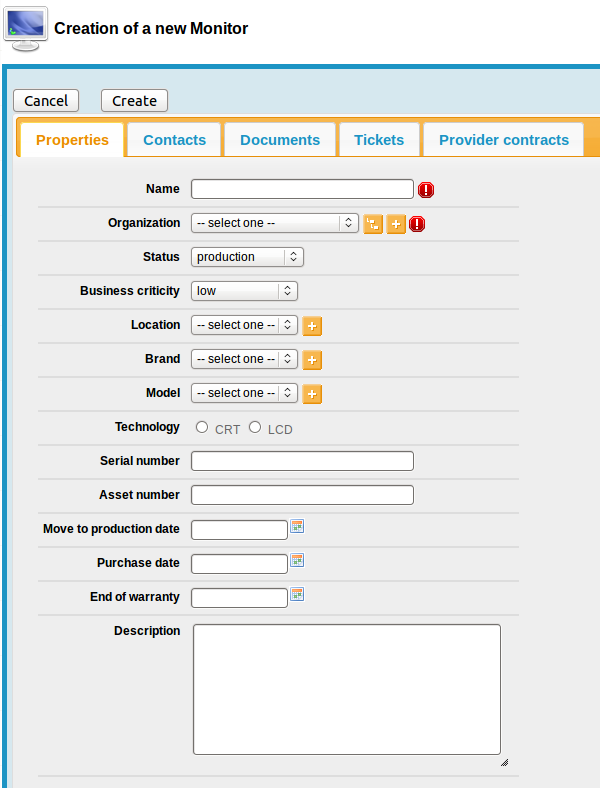

The Monitor Class

What you will need

  • iTop installed on a development machine, on which you can easily access/edit the files.
  • A text editor capable of editing PHP and XML file and supporting UTF-8. On Windows you can use Wordpad (Notepad does not like Unix line endings) or one of the excellent free development IDEs like PSPad or Notepad++.

Customization process

The customization process is the following:

  1. Install a development instance of iTop. It is always better not to experiment in production !!
  2. Install the toolkit to assist you in the customization
  3. Create a new (empty) module using the module creation wizard
  4. Copy this new module to the extensions folder on iTop and run the setup again to install the empty module
  5. Modify the module in extensions and use the toolkit to check your customizations

Repeat the last point until you are satisfied with your customization. When you are done, your new module is ready to be deployed. Copy the module folder in the extension directory on your production iTop instance and run the setup to install it.

Step by step tutorial

Create your customization module

Use the module creation wizard. Fill the form with the following values:

Label Value Remarks
Module name sample-add-class Names starting with itop- and combodo- are reserved for use by Combodo. It is recommended not to put spaces or accentuated characters in the name of the module. Two modules with the same name cannot co-exist in the same iTop instance.
Module Label Add Class Sample This label will be displayed in the setup wizard. Localized characters and spaces are allowed
Module Version 1.0.0 The convention is to use a 3 digits numbering scheme: X.Y.Z
Category business Modules that provide modifications to the data model should be in the category 'business'
Dependencies itop-config-mgmt/2.0.0,itop-endusers-devices/2.0.0 Our customization module depends on the modules: iTop Configuration Management (version 2.0.0) in which the Physical Device class is defined and iTop End User Devices (version 2.0.0) in which the “End User Devices” menu is defined

Click Generate ! to download the empty module as a zip file.

When a module extends an existing class, it must be loaded after the module that declared the class to be extended. To achieve this, make sure that the first module is listed in the dependencies of your new module.

For example if you want to create a new class, dervied from the class VirtualMachine, your custom module must depend on itop-virtualization-mgmt/2.0.0

Install the empty module

Expand the content of the zip into the extensions folder of your development iTop instance. You should now have a folder named sample-add-class inside the extensions folder. this folder contains the following files:

  • datamodel.sample-add-class.xml
  • module.sample-add-class.php
  • en.dict.sample-add-class.php
  • model.sample-add-class.php

Make sure that the file conf/production/config-itop.php is writable for the web server (on Windows: right click to display the file properties and uncheck the read-only flag; on Linux change the rights of the file), then launch the iTop installation by pointing your browser to http://your_itop/setup/

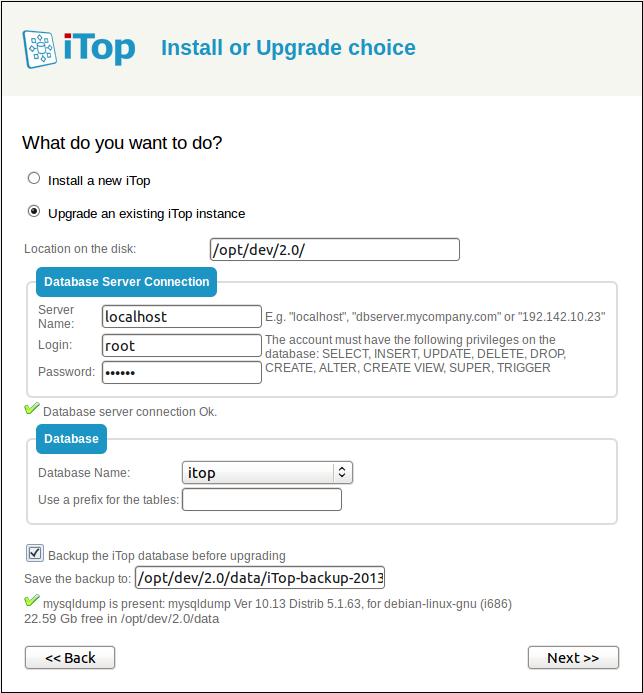

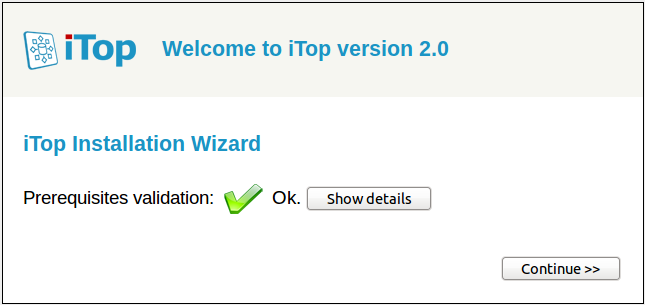

Launching the re-install

Click “Continue »” to start the re-installation.

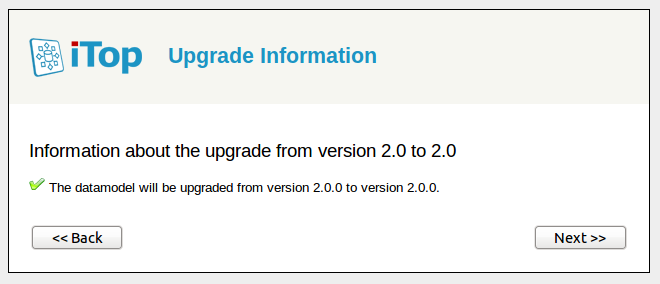

Make sure that “Update an existing instance” is selected before clicking “Next »”.

Continue to the next steps of the wizard…

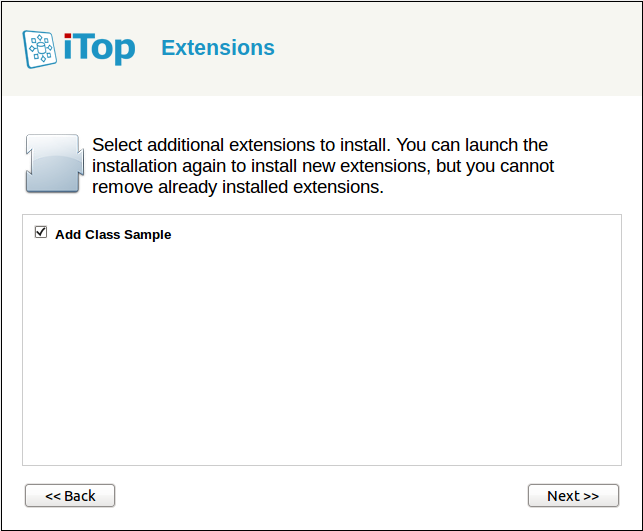

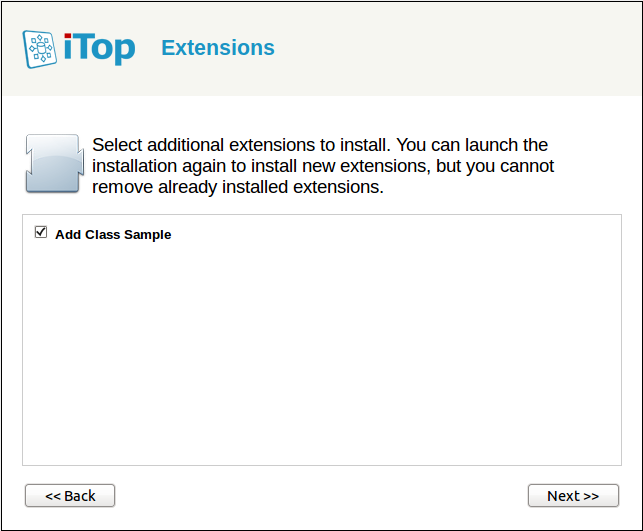

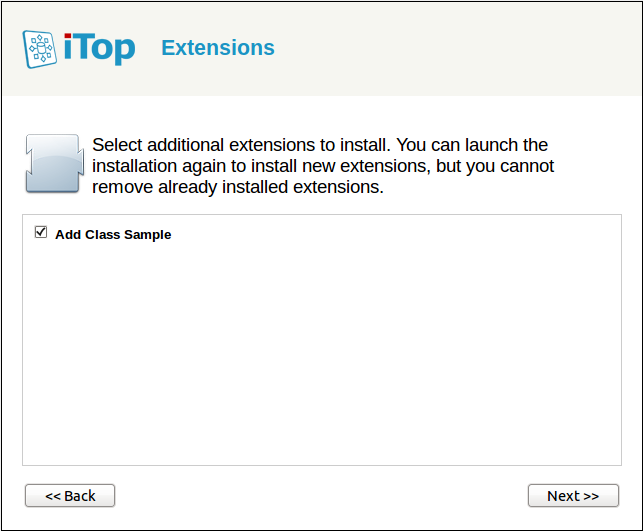

Select the new extension

Your custom module should appear in the list of “Extensions”. If it's not the case, check that the module files were copied in the proper location and that the web server has enough rights to read them.

Select your custom module before clicking “Next »” and complete the installation.

Add the Monitor class

Using you favorite text editor, open the file datamodel.sample-add-class.xml.

Remove the tags <profiles></profiles> since the module will not contain any profile definition.

Inside the classes tag, add the following piece of code:

    <class id="Monitor" _delta="define">
      <parent>PhysicalDevice</parent>
      <properties>
        <category>bizmodel,searchable</category>
        <abstract>false</abstract>
        <key_type>autoincrement</key_type>
        <db_table>monitor</db_table>
        <db_key_field>id</db_key_field>
        <db_final_class_field/>
        <naming>
          <format>%1$s</format>
          <attributes>
            <attribute id="name"/>
          </attributes>
        </naming>
        <display_template/>
        <icon>images/monitor.png</icon>
        <reconciliation>
          <attributes>
            <attribute id="name"/>
            <attribute id="org_id"/>
            <attribute id="organization_name"/>
          </attributes>
        </reconciliation>
      </properties>
      <fields>
        <field id="technology" xsi:type="AttributeEnum">
          <values>
            <value>crt</value>
            <value>lcd</value>
          </values>
          <sql>technology</sql>
          <default_value/>
          <is_null_allowed>true</is_null_allowed>
          <display_style>radio_horizontal</display_style>
        </field>
      </fields>
      <methods/>
     </class>

This instructs iTop to define a new class derived from PhysicalDevice. An extra table “monitor” will be added in SQL to store the class specific data. The “Monitor” class adds one extra field “technology” to the PhysicalDevice class. This field is an enumerated value with two possible values “lcd” and “crt”. This field is to be stored in the column “technology” in the SQL database.

For more information about the meaning of the various parameters of the class and field tags, refer to the XML reference documentation.

The <presentation> tag must also be defined to describe how the object should be displayed in iTop. There are three “presentations” to define:

  • The “details” defines the form used to display and edit an instance of the object
  • The “list” defines the default columns to be used for displaying a list of objects of this class
  • The “search” defines the available fields in the search form for this class of objects

Add the following piece of code just after the closing </fields> tag:

      <presentation>
        <details>
          <items>
            <item id="name">
              <rank>10</rank>
            </item>
            <item id="org_id">
              <rank>20</rank>
            </item>
            <item id="status">
              <rank>30</rank>
            </item>
            <item id="business_criticity">
              <rank>40</rank>
            </item>
            <item id="location_id">
              <rank>50</rank>
            </item>
            <item id="brand_id">
              <rank>60</rank>
            </item>
            <item id="model_id">
              <rank>70</rank>
            </item>
            <item id="technology">
              <rank>75</rank>
            </item>
            <item id="serialnumber">
              <rank>80</rank>
            </item>
            <item id="asset_number">
              <rank>90</rank>
            </item>
            <item id="move2production">
              <rank>100</rank>
            </item>
            <item id="purchase_date">
              <rank>110</rank>
            </item>
            <item id="end_of_warranty">
              <rank>120</rank>
            </item>
            <item id="description">
              <rank>130</rank>
            </item>
            <item id="contacts_list">
              <rank>140</rank>
            </item>
            <item id="documents_list">
              <rank>150</rank>
            </item>
            <item id="tickets_list">
              <rank>160</rank>
            </item>
            <item id="providercontracts_list">
              <rank>170</rank>
            </item>
            <item id="services_list">
              <rank>180</rank>
            </item>
          </items>
        </details>
        <search>
          <items>
            <item id="name">
              <rank>10</rank>
            </item>
            <item id="org_id">
              <rank>20</rank>
            </item>
            <item id="status">
              <rank>30</rank>
            </item>
            <item id="business_criticity">
              <rank>40</rank>
            </item>
            <item id="location_id">
              <rank>50</rank>
            </item>
            <item id="brand_id">
              <rank>60</rank>
            </item>
            <item id="model_id">
              <rank>70</rank>
            </item>
            <item id="technology">
              <rank>75</rank>
            </item>
            <item id="serialnumber">
              <rank>80</rank>
            </item>
            <item id="asset_number">
              <rank>90</rank>
            </item>
            <item id="move2production">
              <rank>100</rank>
            </item>
            <item id="purchase_date">
              <rank>110</rank>
            </item>
            <item id="end_of_warranty">
              <rank>120</rank>
            </item>
          </items>
        </search>
        <list>
          <items>
            <item id="org_id">
              <rank>10</rank>
            </item>
            <item id="status">
              <rank>20</rank>
            </item>
            <item id="business_criticity">
              <rank>30</rank>
            </item>
            <item id="location_id">
              <rank>40</rank>
            </item>
            <item id="brand_id">
              <rank>50</rank>
            </item>
            <item id="model_id">
              <rank>60</rank>
            </item>
            <item id="serialnumber">
              <rank>70</rank>
            </item>
          </items>
        </list>
      </presentation>

You should now have the following XML file:

datamodel.sample-add-class.xml
<?xml version="1.0" encoding="UTF-8"?>
<itop_design xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="1.0">
  <classes>
    <class id="Monitor" _delta="define">
      <parent>PhysicalDevice</parent>
      <properties>
        <category>bizmodel,searchable</category>
        <abstract>false</abstract>
        <key_type>autoincrement</key_type>
        <db_table>monitor</db_table>
        <db_key_field>id</db_key_field>
        <db_final_class_field/>
        <naming>
          <format>%1$s</format>
          <attributes>
            <attribute id="name"/>
          </attributes>
        </naming>
        <display_template/>
        <icon>images/monitor.png</icon>
        <reconciliation>
          <attributes>
            <attribute id="name"/>
            <attribute id="org_id"/>
            <attribute id="organization_name"/>
          </attributes>
        </reconciliation>
      </properties>
      <fields>
        <field id="technology" xsi:type="AttributeEnum">
          <values>
            <value>crt</value>
            <value>lcd</value>
          </values>
          <sql>technology</sql>
          <default_value/>
          <is_null_allowed>true</is_null_allowed>
          <display_style>radio_horizontal</display_style>
        </field>
      </fields>
      <methods/>
      <presentation>
        <details>
          <items>
            <item id="name">
              <rank>10</rank>
            </item>
            <item id="org_id">
              <rank>20</rank>
            </item>
            <item id="status">
              <rank>30</rank>
            </item>
            <item id="business_criticity">
              <rank>40</rank>
            </item>
            <item id="location_id">
              <rank>50</rank>
            </item>
            <item id="brand_id">
              <rank>60</rank>
            </item>
            <item id="model_id">
              <rank>70</rank>
            </item>
            <item id="technology">
              <rank>75</rank>
            </item>
            <item id="serialnumber">
              <rank>80</rank>
            </item>
            <item id="asset_number">
              <rank>90</rank>
            </item>
            <item id="move2production">
              <rank>100</rank>
            </item>
            <item id="purchase_date">
              <rank>110</rank>
            </item>
            <item id="end_of_warranty">
              <rank>120</rank>
            </item>
            <item id="description">
              <rank>130</rank>
            </item>
            <item id="contacts_list">
              <rank>140</rank>
            </item>
            <item id="documents_list">
              <rank>150</rank>
            </item>
            <item id="tickets_list">
              <rank>160</rank>
            </item>
            <item id="providercontracts_list">
              <rank>170</rank>
            </item>
            <item id="services_list">
              <rank>180</rank>
            </item>
          </items>
        </details>
        <search>
          <items>
            <item id="name">
              <rank>10</rank>
            </item>
            <item id="org_id">
              <rank>20</rank>
            </item>
            <item id="status">
              <rank>30</rank>
            </item>
            <item id="business_criticity">
              <rank>40</rank>
            </item>
            <item id="location_id">
              <rank>50</rank>
            </item>
            <item id="brand_id">
              <rank>60</rank>
            </item>
            <item id="model_id">
              <rank>70</rank>
            </item>
            <item id="technology">
              <rank>75</rank>
            </item>
            <item id="serialnumber">
              <rank>80</rank>
            </item>
            <item id="asset_number">
              <rank>90</rank>
            </item>
            <item id="move2production">
              <rank>100</rank>
            </item>
            <item id="purchase_date">
              <rank>110</rank>
            </item>
            <item id="end_of_warranty">
              <rank>120</rank>
            </item>
          </items>
        </search>
        <list>
          <items>
            <item id="org_id">
              <rank>10</rank>
            </item>
            <item id="status">
              <rank>20</rank>
            </item>
            <item id="business_criticity">
              <rank>30</rank>
            </item>
            <item id="location_id">
              <rank>40</rank>
            </item>
            <item id="brand_id">
              <rank>50</rank>
            </item>
            <item id="model_id">
              <rank>60</rank>
            </item>
            <item id="serialnumber">
              <rank>70</rank>
            </item>
          </items>
        </list>
      </presentation>
    </class>
  </classes>
<menus>
</menus>
</itop_design>

Check your modification by running the toolkit. Point your browser to http://your_itop/toolkit.

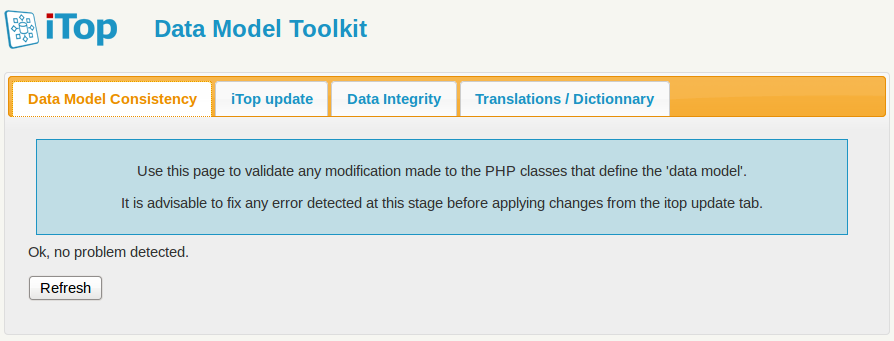

Checking the modifications with the toolkit

If any error is reported at this stage, fix it by editing the XML file and check again your modifications by clicking on the “Refresh” button in the toolkit page.

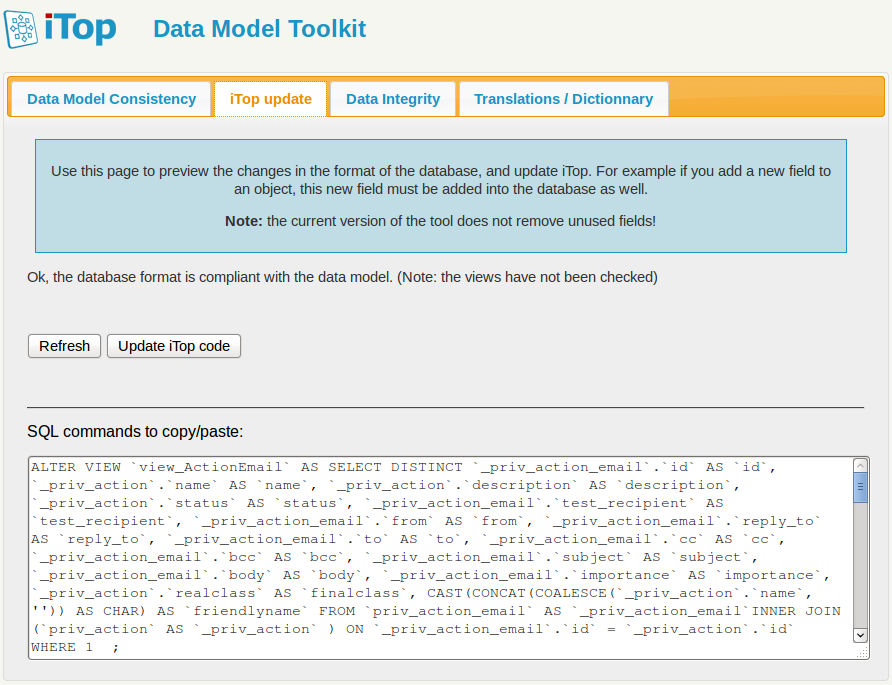

Once all the errors have been fixed, you can apply the modifications to iTop by using the second tab of the toolkit:

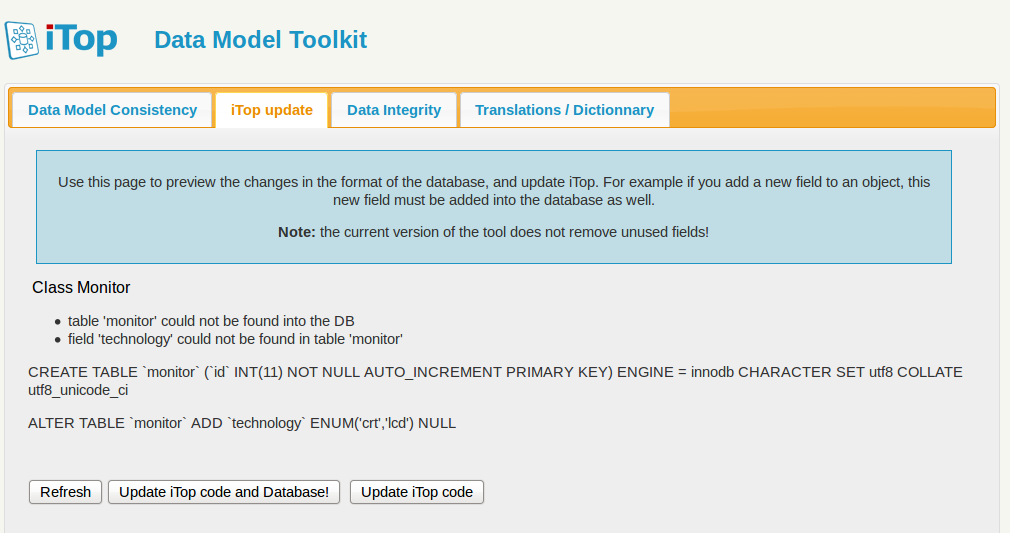

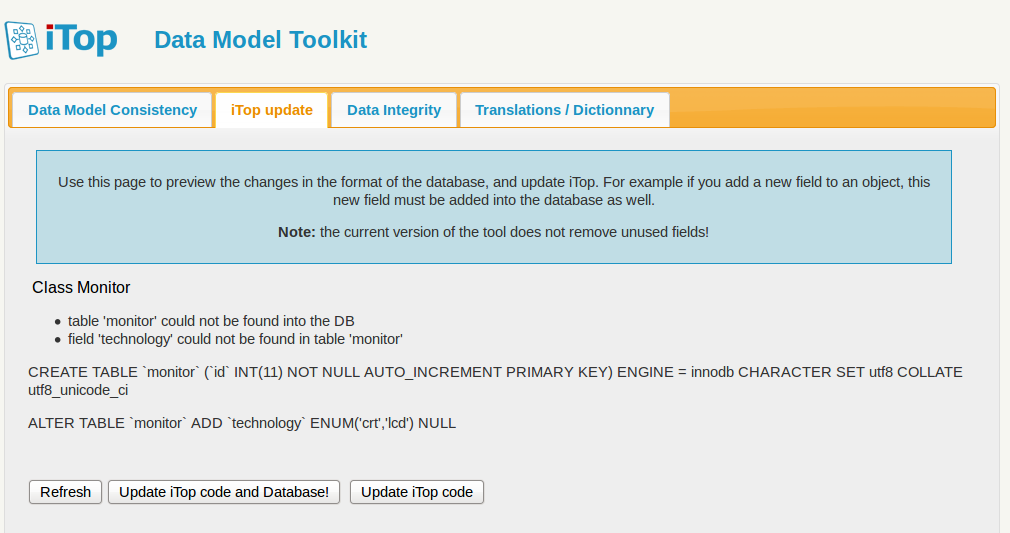

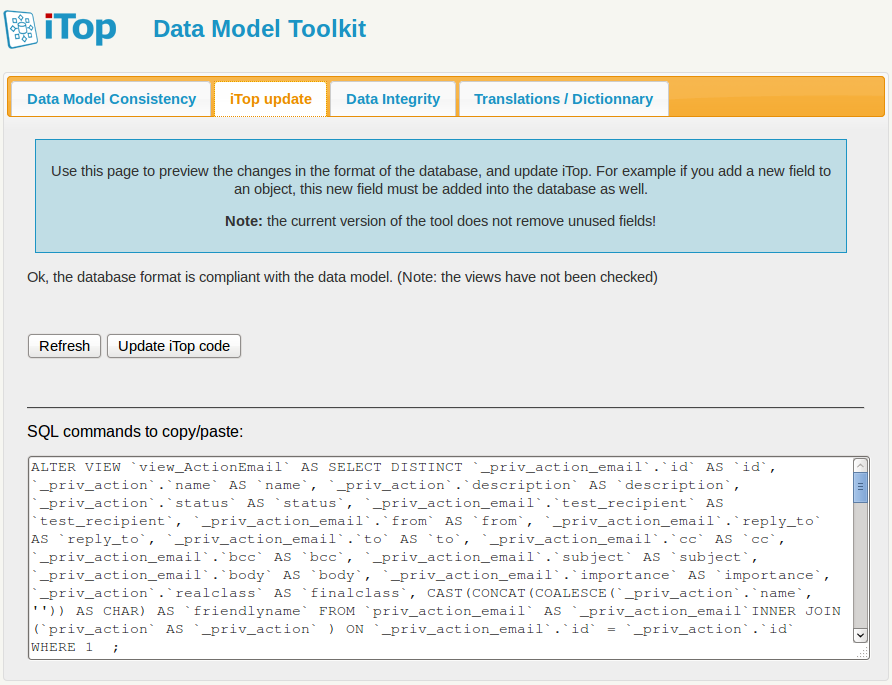

Updating the database schema with the toolkit

Click on the button Update iTop Code and Database! to:

  1. Compile the XML data model to PHP classes
  2. Update the database schema (creation of the monitor table).

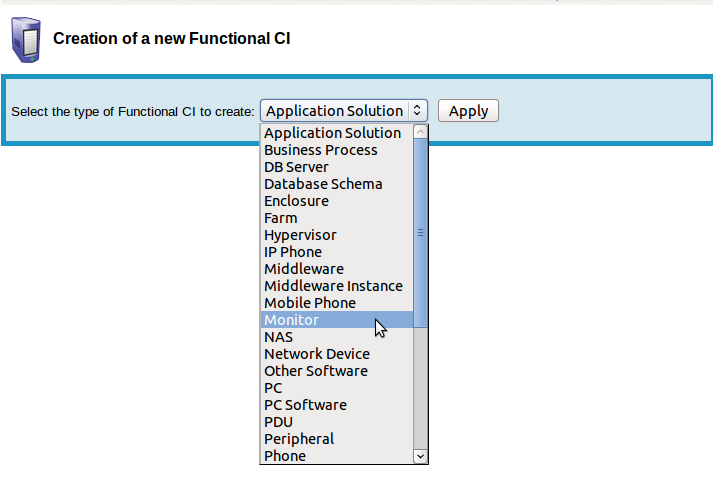

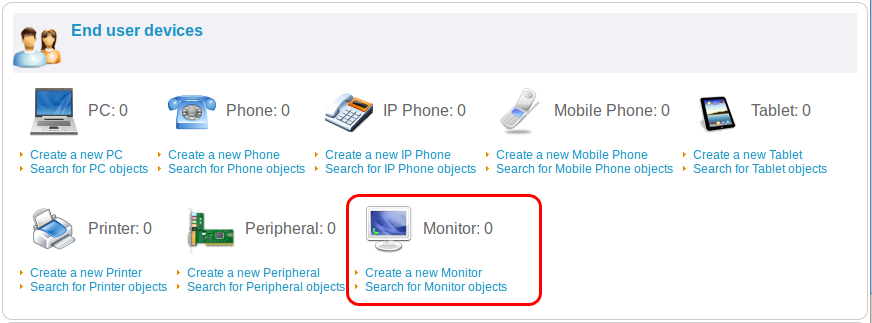

At this point, if you navigate in iTop and click on the “Configuration Management / New CI” menu, you can see that “Monitor” is available in the drop-down list:

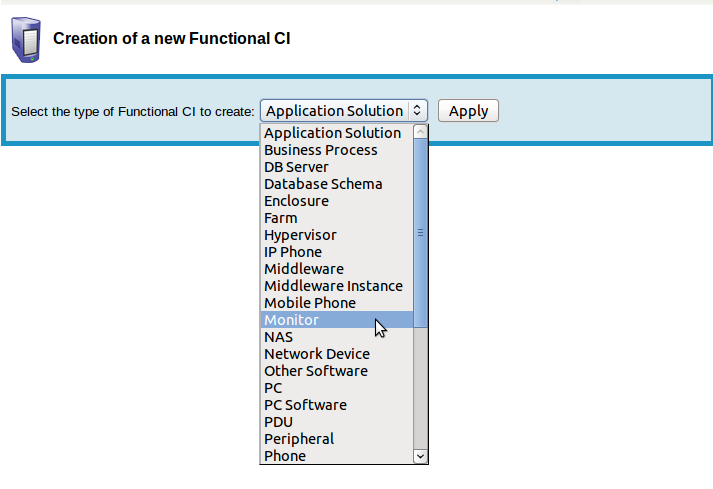

New Monitor menu

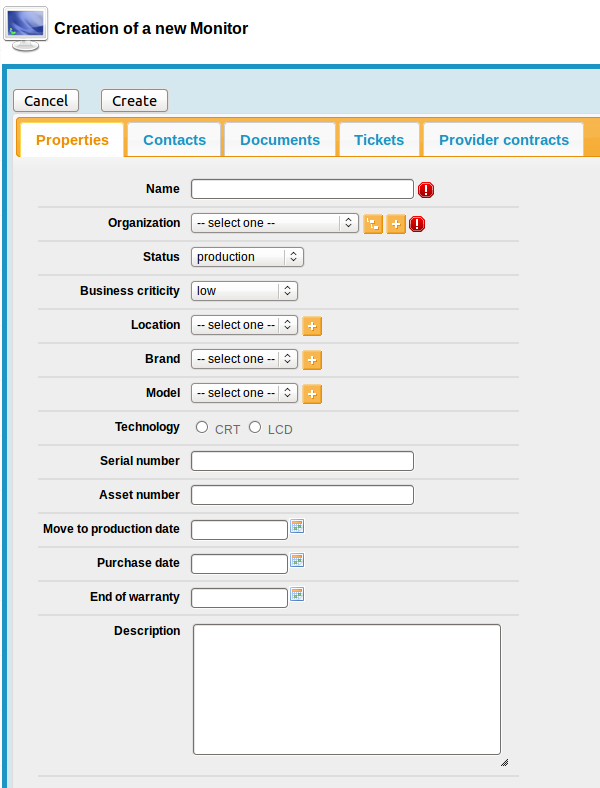

The following form gets displayed:

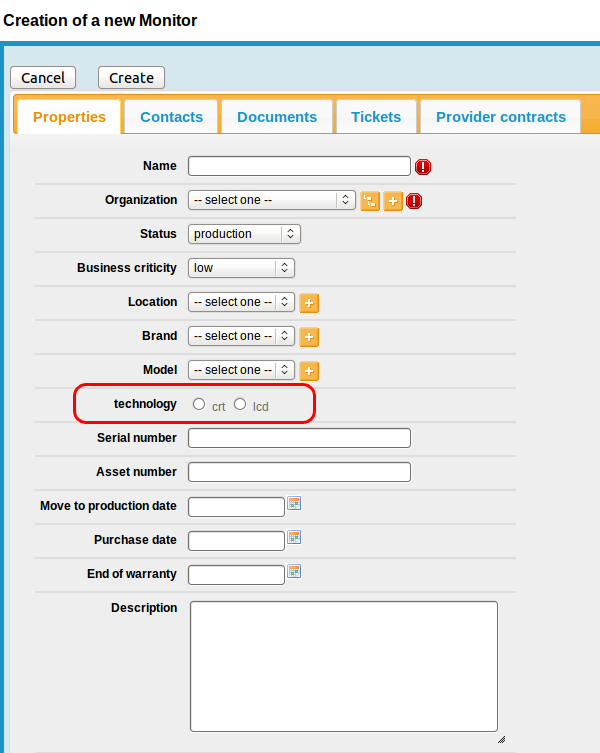

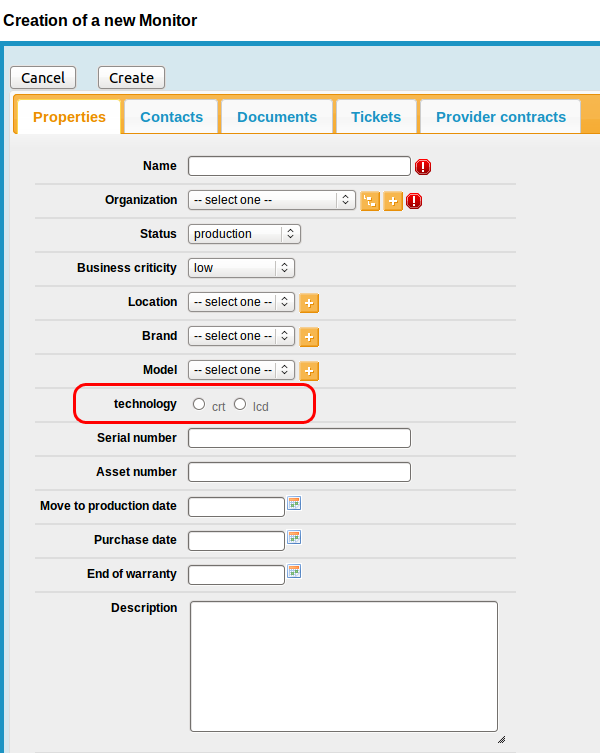

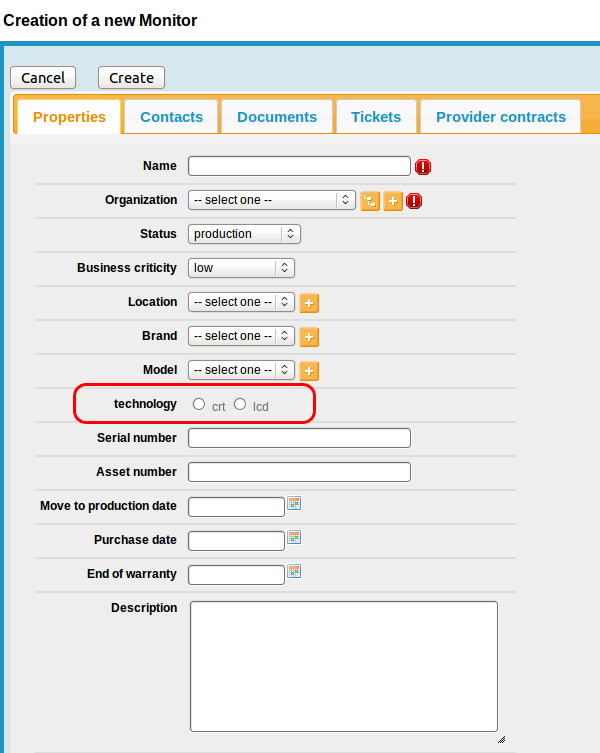

Monitor creation form, not yet complete

As you can see the new “Monitor” class seems to work fine already. However there are some missing pieces:

  • The class has no icon associated with it,
  • The label of the “technology” field (and its values) are in lowercase,
  • Model can't be assigned to the Monitor type

Add an Icon for the class

In the datamodel.sample-add-class.xml the class icon is defined as:

        <icon>images/monitor.png</icon>

This means that itop expects a file named monitor.png in the images subfolder of the module.

To provide the icon, create the images folder inside the extensions/sample-add-class folder and copy a nice monitor icon - as monitor.png - inside it.

Icon files can be in any format that is commonly supported by web browsers (JPEG, GIF, PNG…), but PNG-24 is the only format that supports smooth transparency. The recommended size for class icons is 48×48 pixels.
A good source of nice icons is http://www.iconfinder.com/ (pay attention to the licences)

Fix the labels

In order to have the new technology field display properly, you need to edit the dictionary.

Using you text editor, open the file en.dict.sample-add-class.php.

Insert the lines:

  'Class:Monitor' => 'Monitor',
        'Class:Monitor+' => 'A computer display',
        'Class:Monitor/Attribute:technology' => 'Technology',
        'Class:Monitor/Attribute:technology+' => 'Technology used for the display',
        'Class:Monitor/Attribute:technology/Value:crt' => 'CRT',
        'Class:Monitor/Attribute:technology/Value:lcd' => 'LCD',

Just below the comment:

  // Dictionary entries go here

The first two lines are the label for the class and a short explanation about the meaning of the class. The other lines provides the translated label for the new field and its values.

You should obtain the following file:

en.dict.sample-add-class.php
<?php
/**
 * Localized data
 *
 * @copyright   Copyright (C) 2013 XXXXX
 * @license     http://opensource.org/licenses/AGPL-3.0
 */

Dict::Add('EN US', 'English', 'English', array(
        // Dictionary entries go here
        'Class:Monitor' => 'Monitor',
        'Class:Monitor+' => 'A computer display',
        'Class:Monitor/Attribute:technology' => 'Technology',
        'Class:Monitor/Attribute:technology+' => 'Technology used for the display',
        'Class:Monitor/Attribute:technology/Value:crt' => 'CRT',
        'Class:Monitor/Attribute:technology/Value:lcd' => 'LCD',
));
?>

One more time, check your modification by running the toolkit.

Checking the modifications with the toolkit

If errors are reported at this stage, fix them by editing the PHP file and check again your modifications by clicking on the “Refresh” button in the toolkit page.

Once all the errors have been fixed, you can apply the modifications to iTop by using “Update iTop Code” button on the second tab of the toolkit:

Applying the modifications to iTop

If you navigate to the details of a Server in iTop, you should now see the following:

The new Monitor class

Add Monitor class in Model.type

The Model type is defined in the “type” attribute of the class. This attribute is a AttributeEnum, so we need to add Monitor as one of the possible values. To do so, copy/paste this in the classes node of the XML :

    <class id="Model" _delta="must_exist">
      <fields>
        <field id="type" xsi:type="AttributeEnum">
          <values>
            <value id="Monitor" _delta="define">Monitor</value>
          </values>
        </field>
      </fields>
    </class>

Add a dashboard item

At this stage, the only way to access the Monitors in iTop is either by searching for any CI, or through the “New CI” menu.

Let's add the Monitor object to the “Configuration Management / Overview” dashboard, in the “End User Devices” section.

In order to provide the expected result, our customization module will have to alter the definition of this dashboard. This can be achieved by replacing the empty <menus></menus> tags by the following XML definition in the file datamodel.sample-add-class.xml:

<menus>
  <menu id="ConfigManagementOverview" xsi:type="DashboardMenuNode" _delta="must_exist">
    <definition>
      <cells>
        <cell id="2" _delta="must_exist">
          <dashlets>
            <dashlet id="99" xsi:type="DashletBadge" _delta="define">
              <rank>8</rank>
              <class>Monitor</class>
            </dashlet>
          </dashlets>
        </cell>
      </cells>
    </definition>
  </menu>
</menus>
The Overview dashboard is defined in several parts in the iTop data model. The 'End User Devices“ section of the dashboard is defined by the “itop-enduser-devices” module. In order to be able to alter this definition, our customization module must be declared as depending on “itop-enduser-devices”, so that it will be loaded after this module.

One more time, check your modification by running the toolkit.

Checking the modifications with the toolkit

If errors are reported at this stage, fix them by editing the PHP file and check again your modifications by clicking on the “Refresh” button in the toolkit page.

Once all the errors have been fixed, you can apply the modifications to iTop by using “Update iTop Code” button on the second tab of the toolkit:

Applying the modifications to iTop

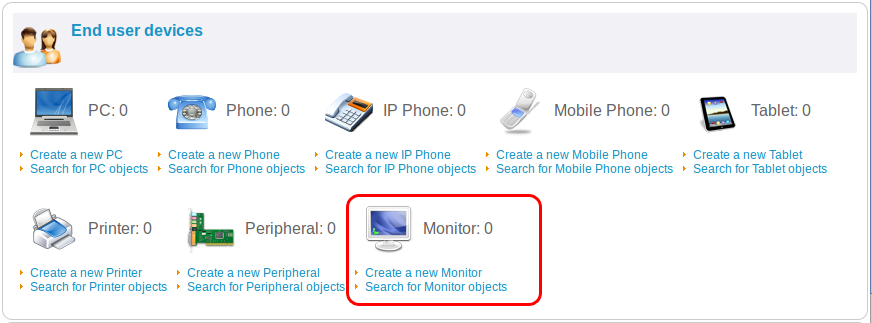

If you navigate to the “Configuration Management / Overview” menu in iTop, you should now see the following:

Modified Overview dashboard

Final Customization Module

You can download the complete customization module by clicking on the link below:

sample-add-class.zip

Next Steps

To deploy your customization to another iTop server, simply copy the folder “sample-add-class” to the extensions folder of iTop and run the setup again.

3_0_0/customization/add-class-sample.txt · Last modified: 2022/01/21 16:52 by 127.0.0.1
Back to top

Table of Contents

Contact us
Contact us
