Prerequisite: You must be familiar with the Syntax used in Tutorials

In this tutorial, we want to notify someone, when a ticket spends more than 2h in a assigned state, and again when we have reached 6h in that state. This requires to:

1. Define a PHP class implementing iMetricComputer, in order to compute that fixed delay as the future stopwatch goal.
2. Add a stopwatch attribute on UserRequest class, to count when the ticket is in “assigned” state, with a fixed goal.
3. Set the working_time to DefaultWorkingTimeComputer to count time 24*7 or set it to SLAComputation for taking the working periods into account (usually applicable on a sub-ticket class only).

Prerequisite: You must be a Combodo's customer

This action requires to have the profile “Designer PHP developer”, if you have not, raise a support ticket to Combodo, to get it created for you.

We defined a 6h delay and notify after 2h hours and again after 6h

class FixedDelayMetric implements iMetricComputer
{
    public static function GetDescription()
    {
            return "Fixed 6h delay";
    }
    public function ComputeMetric($oObject)
    {
        $iRes = 6*3600; // goal is expected to be provided in seconds
        return $iRes;
    }
}

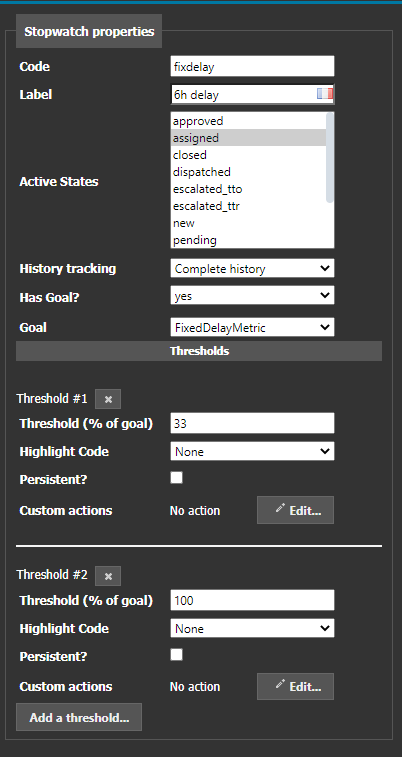

To create a stopwatch, click on the small button next to the title “Stopwatches” in the bottom pane.

Give it a code, a label and select the state(s) in which the stopwatches should be running, here just assigned

Add a Threshold at 33% of the goal

And another Threshold at 100% of the goal

On iTop Products, when no working time is defined on a threshold, then automatically the SLAComputation is used with this oql:

Configuration

        'combodo-sla-computation' => array (
                'coverage_oql' => 'SELECT CoverageWindow AS cw
                       JOIN lnkCustomerContractToService AS l1 ON l1.coveragewindow_id = cw.id
                       JOIN CustomerContract AS cc ON l1.customercontract_id = cc.id
                       WHERE cc.org_id= :this->org_id AND l1.service_id = :this->service_id',
                'holidays_oql' => 'SELECT Holiday',
        ),

So if the object on which you have created the stopwatch, has no service_id or no org_id, then the above query cannot be used and you will need a different working time.

<working_time>DefaultWorkingTimeComputer</working_time>

• For 24*7, uses DefaultWorkingTimeComputer
• For your own method to compute working time, you need to create a new class implementing the iWorkingTimeComputer interface and use it as working_time of your stopwatch.

Prerequisite: You must have already created an iTop extension.

Create an iTop extension

In a php file:

class FixedDelayMetric implements iMetricComputer
{
    public static function GetDescription()
    {
            return "Fixed 6h delay";
    }
    public function ComputeMetric($oObject)
    {
        $iRes = 6*3600; // goal is expected to be provided in seconds
        return $iRes;
    }
}

In the xml file:

itop_design / classes / class@UserRequest / fields

      <!-- Add a stopwatch to count the timespent in this state -->
      <field id="fixdelay" xsi:type="AttributeStopWatch" _delta="define">
        <states>
          <!-- here are the states during which the stopwatch is counting time -->
          <state id="assigned">assigned</state>
        </states>
        <!-- here we decided to count time regardless of the working hours -->
        <working_time>DefaultWorkingTimeComputer</working_time>
        <thresholds/>
        <goal>FixedDelayMetric</goal>
        <always_load_in_tables>true</always_load_in_tables>
      </field>

itop_design / dictionaries / dictionary@EN US / entries

  <entry id="Class:UserRequest/Attribute:fixdelay" _delta="define">
    <![CDATA[6h Delay]]>
  </entry>

In your iTop you must now define Triggers based on thresholds and linked then to a Notification action.

Of course you will use your newly created stopwatch fixdelay and the available thresholds are 33 and 100.
